Low power proximity datalogger using Parallax Mini PIR

// Version 0.01, Last updated on: February 27, 2015

The following tutorial will guide you through the process of building your own open-source low power proximity datalogger based on the Arduino platform and built on a robust solderable breadboard format, as shown in the pic below. The sensor and data logger combination is designed to detect motion in a room and store the data onto an SD card at specified intervals. The goal is to achieve approximately 8-12 months of battery life with 3 AA batteries or over 12 months with a 2,500mAh Lithium ion polymer battery.

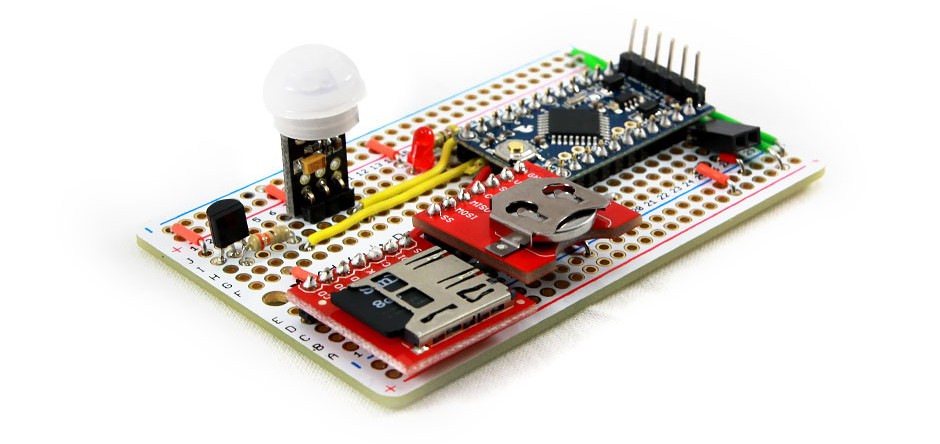

assembly_PIR_final

Figure 1. Assembled OSBSS proximity/motion datalogger

Difficulty Level: Beginner, soldering skills required, little to no electronics knowledge required.

Time required: 1-2 hours, depending on experience and skill.

Important:

  1. If you are not familiar with how a breadboard works, check out a simple tutorial by SparkFun. We built our first prototype on a regular breadboard, but this tutorial uses a more robust solderable breadboard which makes the logger more compact and durable.
  2. You will need some soldering skills for this project. If you are new to soldering, check out SparkFun’s soldering tutorial.



STEP #1: What you will need:

Parts requirements:
Arduino Pro Mini 328 3.3V/8MHz ($9.95) — we used these less expensive 3.3V clones (< $3.00)
DeadOn RTC DS3234 Breakout ($19.95)
CR1225 coin cell battery for the RTC ($1.95)
Parallax Mini PIR module ($9.99)
SanDisk microSD memory card 4GB (or any other capacity; we recommend SanDisk because of reliability issues with others) ($6.29)
microSD Transflash breakout ($9.95)
Adafruit Perma-Proto Half-sized breadboard PCB ($4.50)
Transistor – NPN ($0.50)
LED Basic Green 3mm ($0.35)
3 AA batteries and battery holder ($1.95) or one Li-Po 3.7V 2500mAh battery ($14.95)

Note: Headers are not included with some components. You may have to buy them separately.

Total parts cost: between about $60 and $80 depending on battery type and Arduino Pro Mini cost

(If you are familiar with designing and etching PCBs, buying SMD parts of various components listed above rather than the breakout boards will result in a much lower expense.)

Required accessories:
FTDI Basic Breakout 3.3V ($14.95)
Jumper wire kit ($6.95)
Resistor kit ($7.95) (we will use two resistors: 47Ω and 330Ω)
Soldering iron ($44.95 or $9.95)
Various common tools including needle-nose pliers, wire cutters, and solder

Software requirements:
Arduino IDE (1.0 or higher)

Arduino libraries required:
SDfat library (by William Greiman) – Pre-Aug. 2014 commit
OSBSS DS3234 RTC library
OSBSS PowerSaver library

*You can view and download OSBSS libraries from GitHub.

Note: The DS3234 is an extremely accurate real time clock from Maxim. There are less expensive and less accurate alternatives, but our tutorial is aimed towards people who are interested in gathering data for research applications that require high precision and accuracy. This means that any specific hardware setup and software setup (libraries, program code) is strictly meant for the specified products only.

STEP #2: Assembly

The assembly of the board is straightforward, especially if you already have some experience in soldering electronic components. We will be using Adafruit’s Perma-Proto half-sized breadboard. This is board has the same layout as a typical half-sized breadboard, but requires all components to be soldered on it. This gives us the advantage of having strong connections and ensures the robustness of the data logger.

assembly1

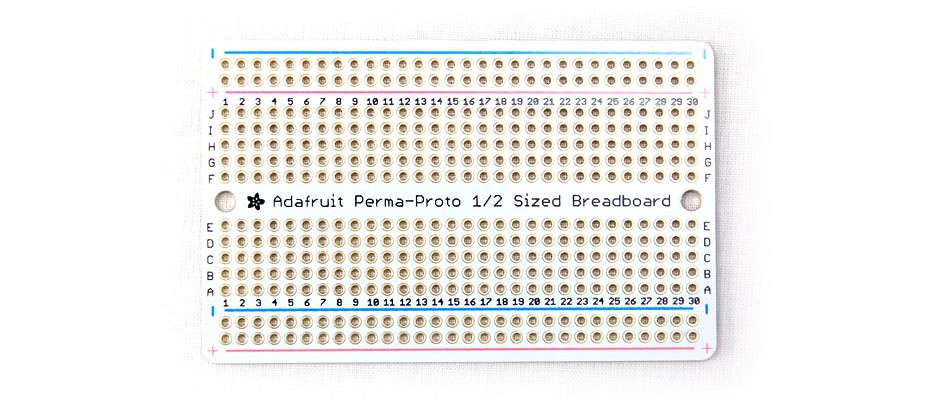

Figure 2. Solderable breadboard from Adafruit

This is what we want to achieve:

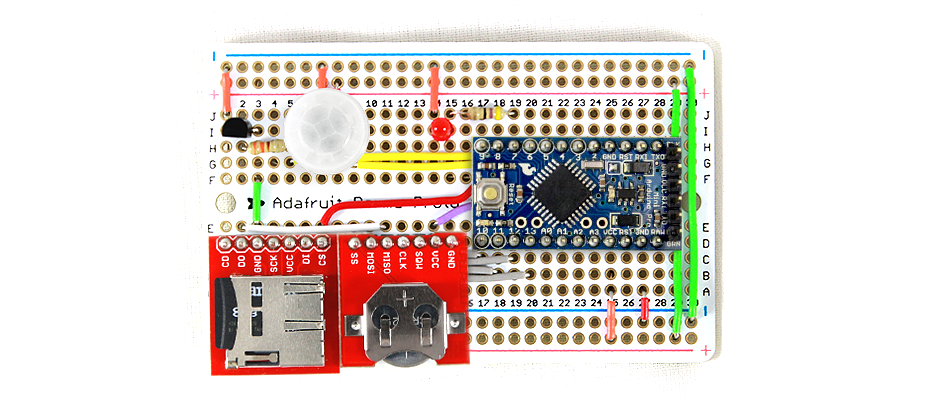

assembly_3

Figure 3. Top view of an assembled OSBSS PIR datalogger

Start by placing all the wires first, as some larger parts will sit on top of them. Cut the wires in appropriate sizes and arrange them as shown. Be careful to leave just the right length of insulation around each wire such that the wires can remain relatively flat against the breadboard while also not shorting across other wires or connections. You can use various sized jumper wires from the kit or cut your own to the appropriate lengths. Use the numbers marked on the protoboard to help arrange the wires at the exact location. The arrangement of the wires will start making sense as we progress further in the tutorial.

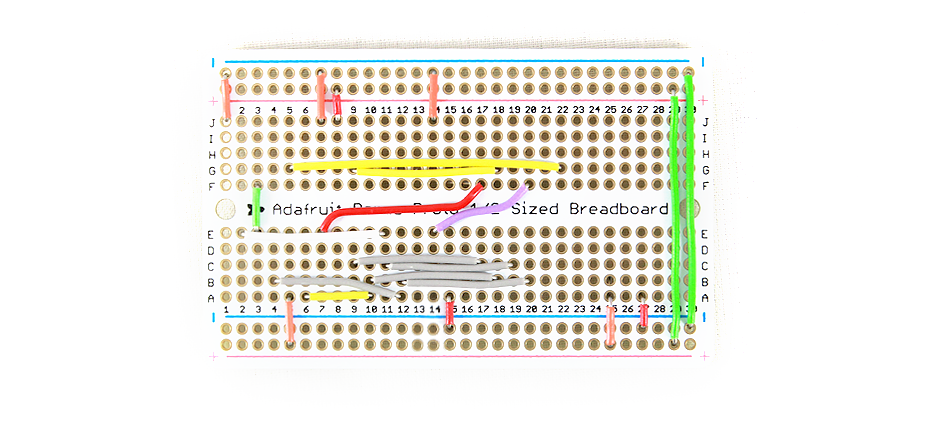

assembly_1_edit

Figure 4. Wiring arrangement

 Bend the ends of the wires to ensure that they stay in place. Be sure to bend as you go so the wires stay held tightly. Now you can solder each wire to the breadboard, while making sure each pin hole is completely filled with the solder. You can solder the holes from either side, whichever is easier, but make sure not to melt the wire insulation when soldering from top. Tools like the Third Hand are very helpful here to hold the board in place. We use SparkFun’s Special Blend solder. We feel that 0.020″ (0.5mm) solder wire works best for prototyping.

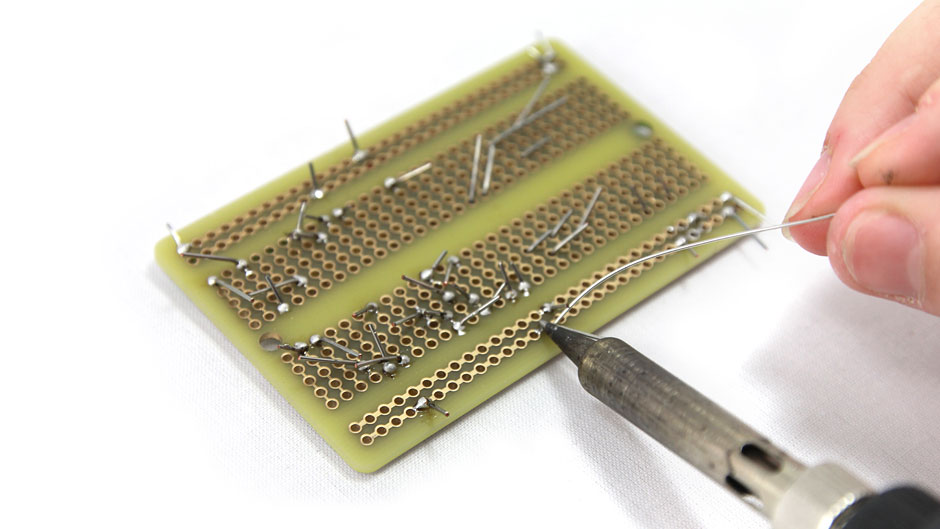

assembly4

Figure 5. Soldering the wire connections

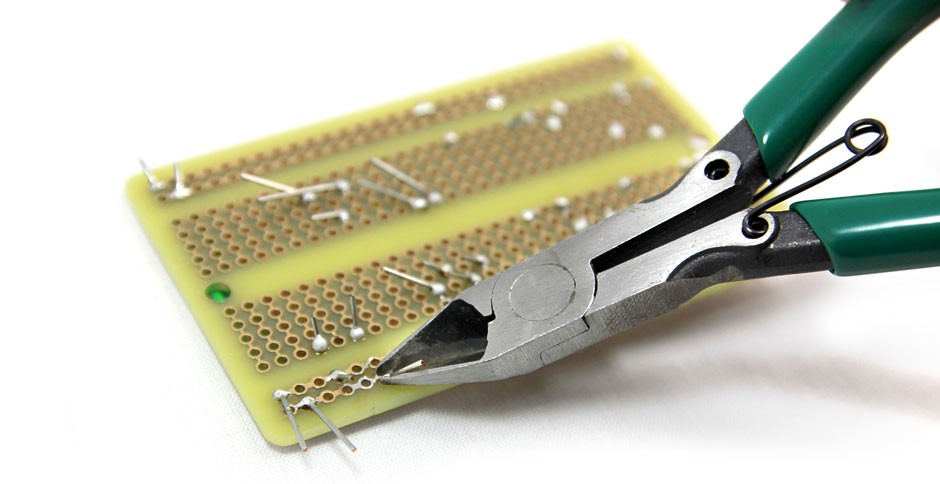

Once all wires are soldered from the bottom, let the board cool down for a minute or two. Now clip off the ends of the wires that you bent earlier. We don’t need those anymore. Be careful when clipping wires as they can shoot off quickly. We recommend wearing safety goggles and clipping wires in an enclosed area (such as under a desk or into a boxed enclosure).
assembly5

Figure 6. Clipping the wires

Now we can start placing smaller electrical components, like the transistor, the LED, and the resistors. The NPN transistor is used to control power going to the microSD card breakout for reducing overall current draw of the data logger. SparkFun has a detailed and well-explained tutorial showing how a transistor works. Be careful to orient the transistor exactly as you see it in Figure 7, with the flat part facing away from its accompanying 330Ω resistor (which is connected in series to the transistor’s middle pin). The LED is used as a visual indication of whenever data is written to the SD card. Be very careful with the polarity of the LED when installing. The 47Ω resistor is connected to the positive side of the LED (the curved end with a longer pin), while the other end of the LED goes to ground (this is the shorter wire closer to the flat edge of the LED). Note that the resistors used are not polarized; i.e., they can be placed in any orientation without worrying about which leads are positive or negative.

Place the small components and repeat the same procedure with these as well: insert components, bend the wires, solder the parts and finally clip off the leftover wire.

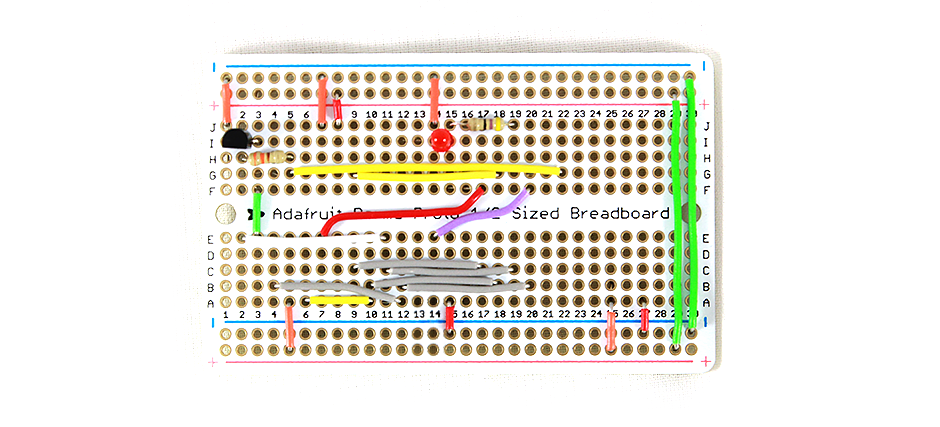

assembly_2_edit

Figure 7. Adding base components

Now that we have our base circuit ready, we can start placing the main components, which are the microSD breakout, the DS3234 RTC breakout, the PIR sensor and the Arduino Pro Mini 3.3V.

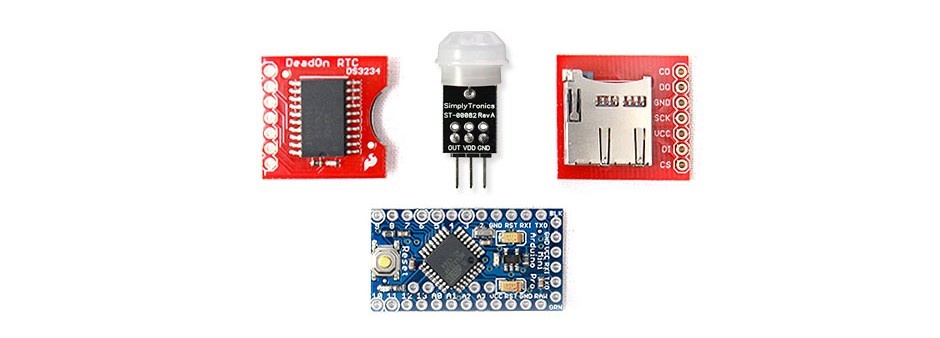

assembly_5

Figure 8. The main components: DS3234 RTC breakout, microSD breakout, Parallax PIR sensor and Arduino Pro Mini 3.3V

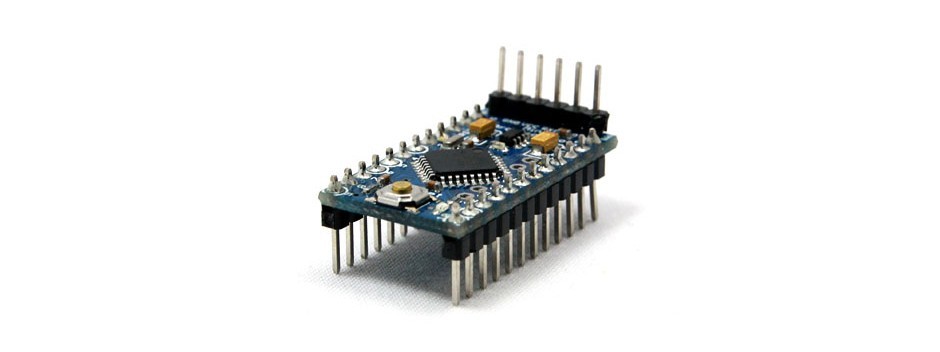

First, we will need to solder some headers on the components with through-holes (except the PIR module, which comes with the headers soldered). The Arduino Pro Mini requires the top 6 pin headers to be soldered facing upwards or on the side, since these pins are what you will use to program it. SparkFun has a neat tutorial explaining how the Pro Mini works and how to use it.

amp

Figure 9. Arduino Pro Mini with headers soldered

Important Note: We have disconnected the red power LED and green status LED on the Pro Mini by cutting out the traces connecting them. This neat tip was provided by a user on SparkFun for disconnecting the voltage regulator (do not disconnect the voltage regulator however – more on this below) and we used the same technique on LEDs. The LEDs significantly increase the current draw and since we want to control our own LED, we don’t really need them. Be careful when you do this — you need to cut the trace with a sharp blade until the circuit is physically broken. But you don’t want to damage any other adjacent components while doing so. You may actually want to try this step before soldering the Pro Mini to the breadboard. Removing the green status LED from the circuit is important for low power, but also becomes necessary when using Pro Mini clones and SPI devices. If you look closely, some clones have a 470Ω resistor, while some even have a 1,000Ω resistor connected in series with the LED. In comparison, the original Arduino Pro Mini has a much lower 330Ω resistor. Since this LED is connected to pin 13 (SCK) on the Arduino, having a large series resistance on this pin can interfere with data transmission between some components on the SPI bus and may result in partial data loss.

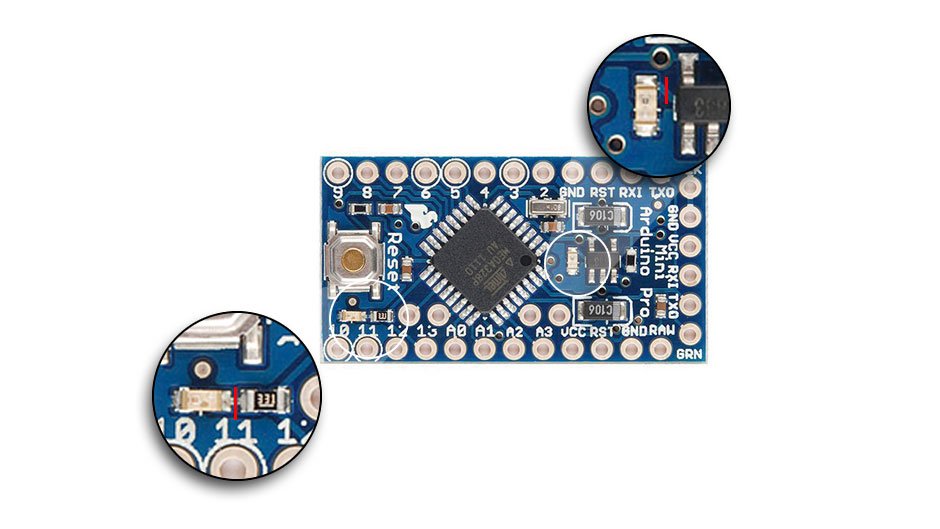

Cut the traces for both LEDs as indicated by the red lines in Figure 10 below.

cut

Figure 10. Cutting the traces to onboard LEDs on the Arduino Pro Mini

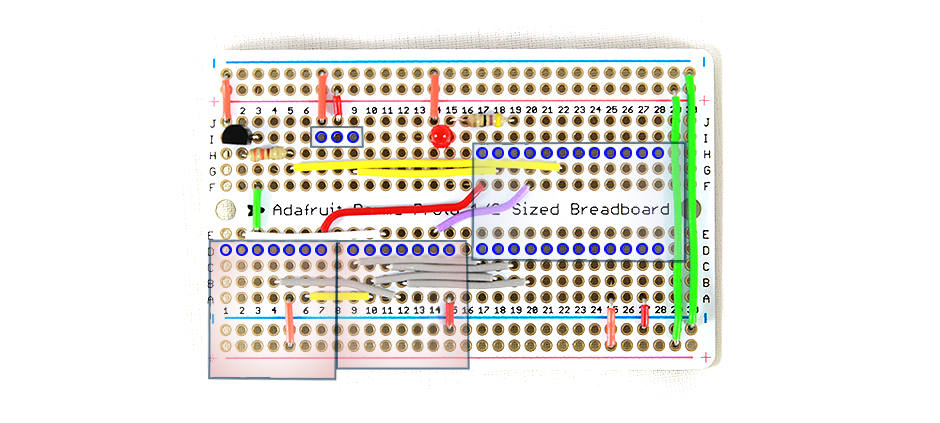

Now, let’s place each component on the board in the appropriate place and solder them one by one. Refer to the overlay of the larger components and the completed datalogger below (Figure 11 and 12) to give you an idea of exactly where to place the wires on the board. The pins marked in blue will help you locate them properly.

assembly_4_edit

Figure 11. Main component overlay

When soldering the boards, if you are having trouble getting them to line up nicely (i.e., the boards aren’t parallel to your main breadboard and your headers aren’t at a 90° angle), you may want to start by soldering just one pin to anchor the board first. Then you can hold the entire piece in one hand while applying heat from the soldering iron in the other hand to briefly melt the solder until you can position it correctly. (Sparkfun has a nice tutorial on header installation).

The last step involves installing a 2-pin female header next to the GND and RAW pins on the Pro Mini. This is where we can connect our power source, i.e., a battery pack. Alternatively, you can solder a JST-PTH breakout board to connect a LiPo battery. Be careful when connecting the JST board – you only need to solder two of the four pins and align it exactly with the GND and RAW pins of the Pro Mini. Do not solder all four pins on the JST board.

Important Note: Using the RAW pin on the Pro Mini means any external voltage (from a battery pack for example) will go through the on-board voltage regulator to provide a regulated 3.3V from the VCC pin to all components. The voltage regulator on the Pro Mini (revision 14) draws about 0.1mA (~100uA) of current while the logger is in sleep mode. If you already have a regulated 3.3V power source, you can disconnect the voltage regulator by cutting out the traces as explained previously (be sure to check the Pro Mini’s footprint and know exactly which trace you’re cutting out) and connect the battery directly to the GND and VCC pins instead. Any current going through the VCC pin now will not go through the voltage regulator. While not using the on-board voltage regulator on some boards significantly reduces power draw and gives increased battery life, using any voltage slightly higher than 3.3V in this particular setup may cause damage and reduce component life. The components may also fail to work; the microSD card reader in particular may corrupt the memory on the microSD card especially if the voltage exceeds its maximum rating, forcing you to manually format the card on the computer. If you are new to low power applications using an Arduino, we recommend supplying a regulated voltage, 3.3V in particular, to all components in order to ensure maximum lifetime of the components, avoid potential failure and data loss. In short – use the RAW pin. There are some Pro Mini clones with a more efficient voltage regulator on board, which may prove very useful here.

assembly_3

Figure 12. Completed PIR data logger

Once it is soldered, clip off the excess header pins from under the board. Be careful again to wear eye protection while clipping the pins from underneath the board. Repeat this procedure with the microSD, RTC, and the PIR sensor to complete the hardware part of this tutorial.

Ensure the components align properly with the wires. A simple check is to follow the ground pin from the Arduino (GND) and make sure all the components’ GND pin are on the same connection. You can do the same with all other pins on the Arduino.

Now you are ready for the software part of the tutorial.



STEP #3: Setup IDEs and libraries

Before we get to the actual programming, first we need to set up the Arduino IDE (Integrated Development Environment). This is where you will be putting your main program code. Download and install Arduino IDE (make sure it’s v1.0 or higher; we used v1.6.0).­­­­­­­ It is available for Windows, Mac OS, and Linux.

Next, you will need the DS3234 RTC library and power saving library for the ATmega328. We specifically developed these libraries for our low power dataloggers. You will also need the Sdfat library by William Greiman. You can download all the libraries from GitHub.

Installation of these libraries is as simple as extracting all files from the zip file into the “libraries” folder located inside your Arduino IDE installation directory. For example, in Windows, this may be located in C:\Program Files\Arduino 1.0.5\libraries\ or C:\Program Files (x86)\Arduino 1.0.5\libraries. On a Mac, the default directory is user\documents\Arduino\libraries. After extraction, you will have three new folders in your libraries directory: DS3234lib3, PowerSaver and SdFat.

Note: The library file and folder names should appear exactly as listed above. If the folder name has an extra word such as “-master” at the end, rename it by removing that part.



STEP #4: Programming the datalogger

Now that we have our IDE ready and our libraries installed, let’s program the datalogger. You can get the .ino file and download the entire code from GitHub. Our code is still being tested extensively and we try our best to keep it simple while eliminating bugs. If you have any comments about it, please let us know.

You can set the filename in the code. Just update the variable filename and upload the code. Make sure that the filename follows the proper format, i.e. the filename must have an extension, cannot start with a number, cannot contain spaces or be more than 8 characters in length. Examples would be: filename.csv, log.csv, data_2.txt.

Keep the .ino in the same folder as the file name (e.g., Arduino\osbss_trh_v_0_01\osbss_trh_v_0_01.ino). Open up the .ino file in the Arduino IDE. Go to Tools > Board and select Arduino Pro or Pro Mini  as shown in Figure 13. Make sure the processor’s voltage and clock speed are set to ATmega328 (3.3V, 8MHz).

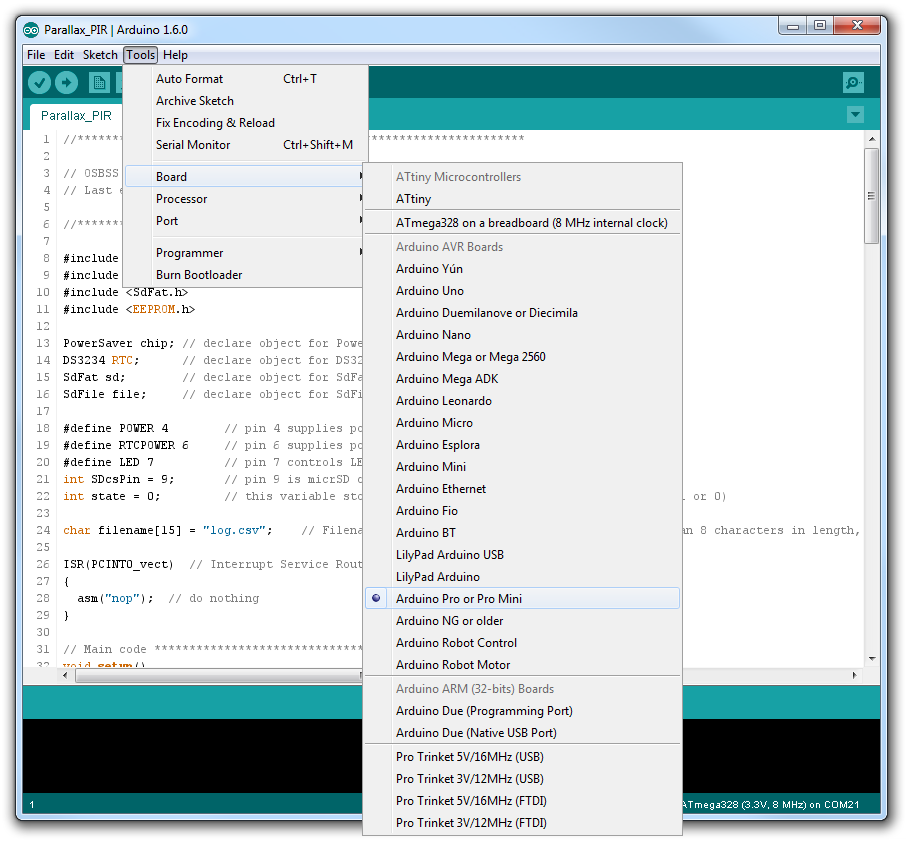

arduino_ide_scrnsht

Figure 13. Setting up the Arduino Pro Mini in Arduino IDE

The Arduino Pro Mini uses an FTDI adapter for programming. You will need to download the latest drivers for the FTDI adapter. The FTDI is connected to the PC via a common mini-B USB cable. Connect the FTDI to the Arduino as shown in Figure 14 below.

Note: Some Arduino Pro Mini 3.3V clones in the eBay link provided above have the programming pins reserved. Make sure the pins on the FTDI align with the pins on the Arduino Pro Mini you are using.

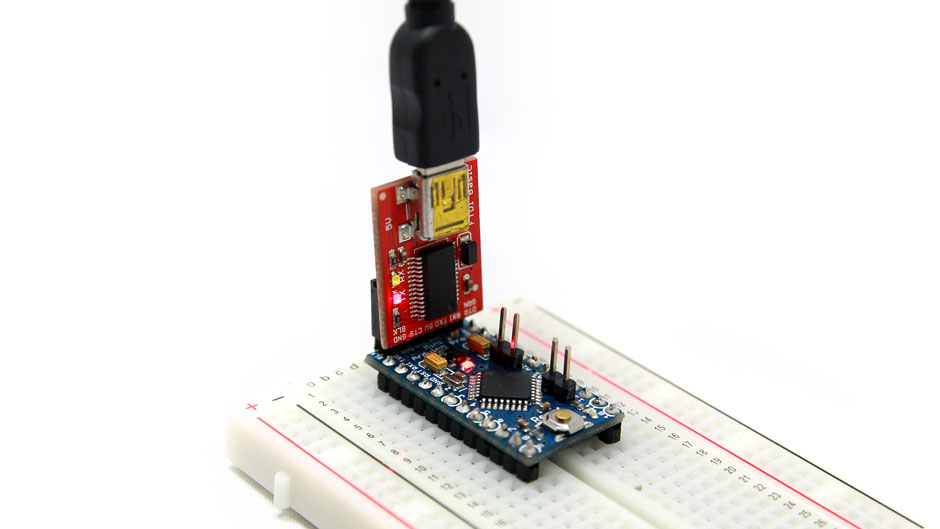

ftdi

Figure 14. Connecting to the Ardunio Pro Mini via FTDI adapter

Once the FTDI is connected via USB, go to Tools > Serial Port and you will see a new COM port listed (ignore COM 1). This is the FTDI detected by the computer. Select this COM port (on a Mac it will be labeled with a ‘tty’ prefix). Click the Verify button to verify that the code contains no errors. If any errors do pop up, check if you installed the libraries properly. The Arduino IDE needs to be restarted after the installation of the libraries, if it was previously open. If you notice errors in the code, leave a comment and we will try our best to fix it.

Now click the Upload button. You should see “Uploading” at the bottom status bar and the FTDI’s LEDs will start blinking rapidly to indicate data transfer. Once the upload process is complete, you should see the LED on the datalogger blink once. This means the code works fine and data is being written to the SD card. Click on the Serial Monitor button. At the bottom of the new window that pops up, verify that the baud rate is set to 19200.

Note: Mac OS users might have a problem during uploading. If you receive an error such as avrdude: stk500_recv(): programmer is not responding, it is likely an FTDI driver issue. You many need to download the latest Virtual COM Port Drivers from FTDI. Try that and restart the Arduino IDE. If you are still getting a similar error after that, follow the instructions provided in this stackoverflow thread: (1) Go to the Arduino IDE preferences pane and select Verbose output during upload, (2) during the uploading process you will see avrdude send three packets (avrdude: Send: 0 [30] [20]). There’s a trick: if you hit the reset button on your Pro Mini just before these 3 packets are sent the program will likely be uploaded successfully. Hopefully this issue will be resolved in a later version of the Arduino IDE.

Important Note: The DS3234 RTC breakout from SparkFun does not come with its own battery. In addition to buying a battery, you will have to set the current date and time when you use it for the first time. Once it’s set, the RTC maintains the date and time on its coin cell battery for several years, just like any other clock. Check our blog post about configuring the RTC’s date and time. Unless you connect the RTC incorrectly or remove its backup battery, you won’t have to set the date and time again. Be sure to do this first, and then launch the datalogger.

Once your code is uploaded from the Arduino IDE the Pro Mini retains that information in memory and it won’t need to be re-uploaded unless something changes in the code. Close the IDE.

You are now ready to use the proximity/motion sensor!



STEP #5: Test Run

Now you can take the FTDI cable off and connect your battery. The positive (red) end of the battery pack should go into the RAW pin on the Arduino, while the negative (black) end goes into the GND pin. Be VERY CAREFUL not to get this wrong or you can easily damage the components! You can either use a 3 AA battery pack,  Lithium Ion Polymer battery or any other power source you want.

Time-stamped motion data will be recorded whenever motion is detected for as long as the logger has power. To retrieve data, simply eject the microSD card and place into a microSD adapter and read directly from your computer as if it you were downloading photos from a digital camera. You’ll see your .csv file with all logged data up until the point that you removed the microSD card or the logger lost power (whichever comes first). One thing is for sure – you probably will never ever run out of memory while writing data. During our tests, one of our loggers was logging data at 1-minute intervals for about 3 months (over 100,000 measurements) and the filesize was around 4.86MB only. At this rate, it would take about 415 years to completely fill up a typical 8GB microSD card.

As an indication, when the microSD card is out, the datalogger blinks the LED three times at every time interval to indicate a missing card. Data will not be logged during the time the SD card is out of the datalogger and logging will resume once you insert it back in.

Understanding how the circuit works:

Now that the circuit is ready and you have successfully launched your logger, we can take a look at the layout and begin to understand how it all works. The Arduino is the main microprocessor to which every other component is connected. If you noticed while wiring, the microSD card breakout and the RTC have some pins in common, namely, MOSI (or DI), MISO (or DO) and CLK (or SCK). These three pins are shared by all SPI devices. in a circuit. They connect to pin 11, 12 and 13 on the Arduino respectively. Each SPI device has a unique SS (or CS) pin on the Arduino through which it can be identified, and the microSD card breakout’s and RTC’s are pin 9 and 10 respectively. To learn more about Serial Peripheral Interface (SPI) and how it works between devices, check out a nice guide by SparkFun.

The Mini PIR sensor from Parallax is a very low power PIR module that detects motion up to 12 feet (3.65 meters) away. It works by detecting changes in infrared light emitted by nearby objects. If a change is detected, it gives a high output (or a logical 1), and where is no more change in the infrared spectrum, it gives a low output (or a logical 0). This 0 or 1 output is very easy to read by the Arduino pin and can be used to wake an Arduino from sleep. Once the Arduino is in deep sleep mode, some event like a button press, interrupts on a pin or an internal timer can wake it up. If none of these are set up, the Arduino is permanently in sleep mode and never wakes up. We set up a pin change interrupt to be detected on pin 8 which is connected to the PIR module’s output pin. Whenever motion is detected, the state of the pin is changed, causing the Arduino to wake up, write that as motion in the SD card and go back to sleep. When motion in the room stops, the state of the pin is changed again, causing the Arduino to wake up again, write that as no movement to the SD card and go back to sleep. The PIR module consumes about 35uA of current at all times when powered on (at 3.3V), allowing our datalogger to run for over a year on batteries.

The transistor is used to turn off the microSD card when not in use. Any component connected to the Arduino’s pins can consume some power, even when they’re not taking measurements. While microSD cards are becoming very efficient in standby mode these days, they need proper pin configuration to avoid unnecessary power draw when not in use. For extended logging applications, the standby current consumption can also been seen as significant. MicroSD cards also consume a large amount of power during initializing, reading and writing, from 50mA up to 150mA in some cases. Using a transistor helps in supplying a large amount of current when needed, and turning it off when not required. Arduino’s pins can supply around 30-40mA only, while the total power supplied to all devices by the Pro Mini’s (Rev. 14) voltage regulator is around 200mA. If 150mA out of this is consumed by the microSD card every time we wake it up, then we might be reaching our threshold of maximum current consumed by the circuit and other components might fail, especially if we happen to add more sensors or devices in this footprint. A transistor can overcome this issue and supply a large amount of current when needed. We simply connect the GND pins of the components we want to turn off to the collector lead of the transistor, instead of the actual GND in the circuit. The Transistor’s emitter pin is then connected to the actual GND pin. The transistor basically acts like a switch, but can also allow devices to pull large amounts of current from the power source. To read more about how transistors work and what else you can do with them, check out SparkFun’s tutorial.

The DS3234 RTC keeps the time for our datalogger. Our specially made library for the dataloggers allow reading of date and time from the RTC. More information about how it actually works is given in the RTC’s datasheet. We set up the code in such a way that the RTC’s power is always turned on, except when need the time from it. When the PIR module detects motion, the RTC’s VCC pin is powered on through pin 6 of the Arduino and the time is recorded. Then the RTC is shut off and the logger goes to sleep. This allows us to save power, extending the battery life.

The LED gives a visual indication of when data has been written to the card. LEDs can consume a high amount of current, so we want to make sure to limit the current going to the LED by using a resistor in series with it. The LED in our datalogger is connected with a resistor to pin 7, which is turned on and off in code. The LED is turned on for about 10 milliseconds once data is written to the SD card and then turn it off instantly.



Summary

assembly_PIR_final

Figure 15. Assembled OSBSS proximity/motion datalogger

With the above setup, we can now achieve an idle current draw of around 0.13mA, raising up to several milliamps for a very short duration when the PIR sensor detects motion, wakes the Arduino up which then writes data to the SD card and then goes back to sleep. All of this happens within about 0.05 seconds, before the chip is in sleep mode again.

By using this low power approach, we can get a theoretical lifetime of 8-12 months on 3 AA batteries. Alternatively, you can also use one 3.7V 4,400mAh Li-Po battery from Adafruit ($19.95) to get almost two years of battery life. If you are feeling adventurous, you can aim for ultimate power-savings by using the bare ATmega328P chip itself. With no additional peripherals, it can significantly reduce average current draw even further, increasing the battery life up to 4-5 years in some cases; but beyond that point, the self-discharge rate of the battery would limit the total time the logger can have power.

To see an example of data collected from the PIR datalogger, check out Torkan Fazli’s blog post.
