Data from OSBSS CO2 sensor

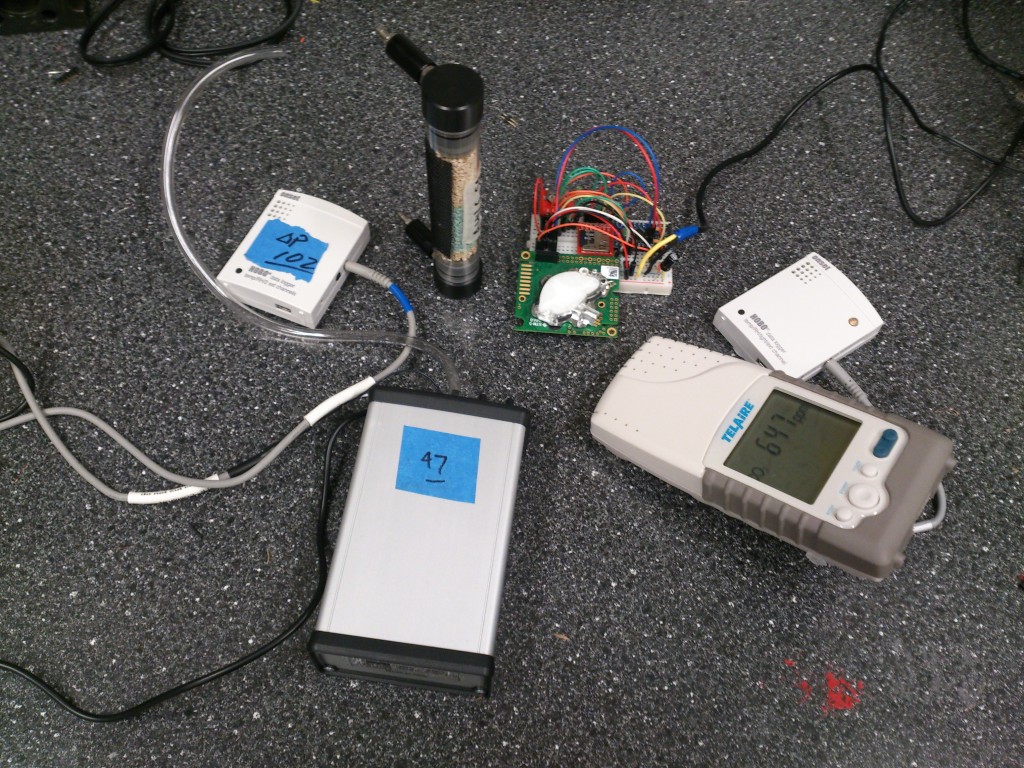

Months ago the initial prototype OSBSS CO2 sensor was designed and made in BERG lab, so as the next step we tried to verify the sensor’s performance. Therefore, as you can see in the following picture we performed a co-location test with OSBSS CO2 sensor and two off-the-shelf CO2 sensors. SBA-5 CO2 Gas Analyzer and Telaire 7001 CO2 Sensor were used for this reason. In order to record data, the off-the-shelf sensors combined with the Onset HOBO Data loggers. As the first attempt we launched all sensors with one minute intervals and placed them close to each other in the BERG lab for approximately 21 hours.

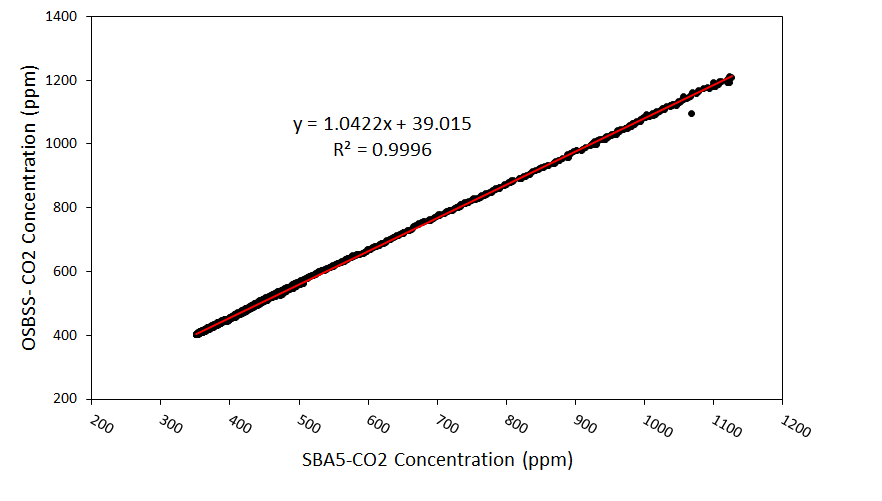

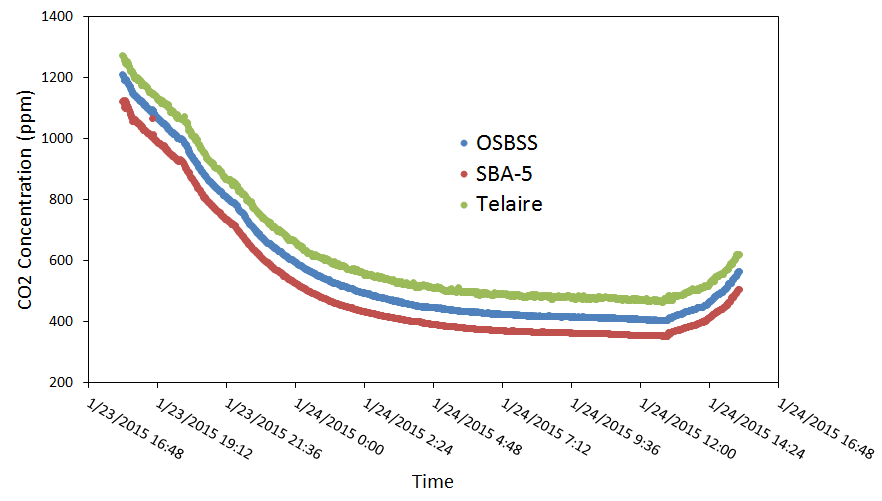

Results from the co-location test is shown in the graph below. From the graph it can be concluded that the overall response pattern of the OSBSS CO2 sensor is exactly the same as SBA-5 and Telaire sensors. The second and third graphs are shown how well OSBSS CO2 sensor correlate against 2 other sensors. The CO2 concentration correlations looks great and there are consistent slops between OSBSS versus SBA-5 and Telaire sensors with R2 values close to 1 for each. However, looking at the time series CO2 concentration data, there are offsets of about 60 ppm CO2 concentration for OSBSS sensor from both SBA-5 and Telaire sensors. From the previous experiments in BERG lab using SBA-5 CO2 Gas Analyzer sensors it is revealed that although they are one of the expensive and accurate CO2 sensors in the market, generally there was an offset of about 50 ppm between them. Therefore, in my opinion the result of our co-location is pretty encouraging. Next time I will built my own CO2 sensor by following the tutorial and will test the performance of it as the further step
